RackyRax 450mm Deep Wall Mounted Data Cabinets
Black Data Cabinet in a range of heights and widths.
£97.75
Excluding VAT.
The compact design of the Rax 19” Wall Mounting Cabinets make them ideal for smaller networks and workgroups.
The cabinets are available in various sizes and are supplied fully assembled. Each cabinet comprises a welded steel frame and adjustable front 19” mounting profiles.
A gland plate is situated in the top and bottom of the cabinet. The cabinets feature ventilation slots top and bottom; and have a lockable glass front door, and removable sides. The cabinet frameworks are finished in a high quality attractive black.
Please note - the 450mm deep (RR-W1) Cabinets do not have rear mounting posts. Use Cantilever shelves which are secured from the front.
If Rear mounting posts are required, please put as a note and these can be supplied seperately and attached on site.

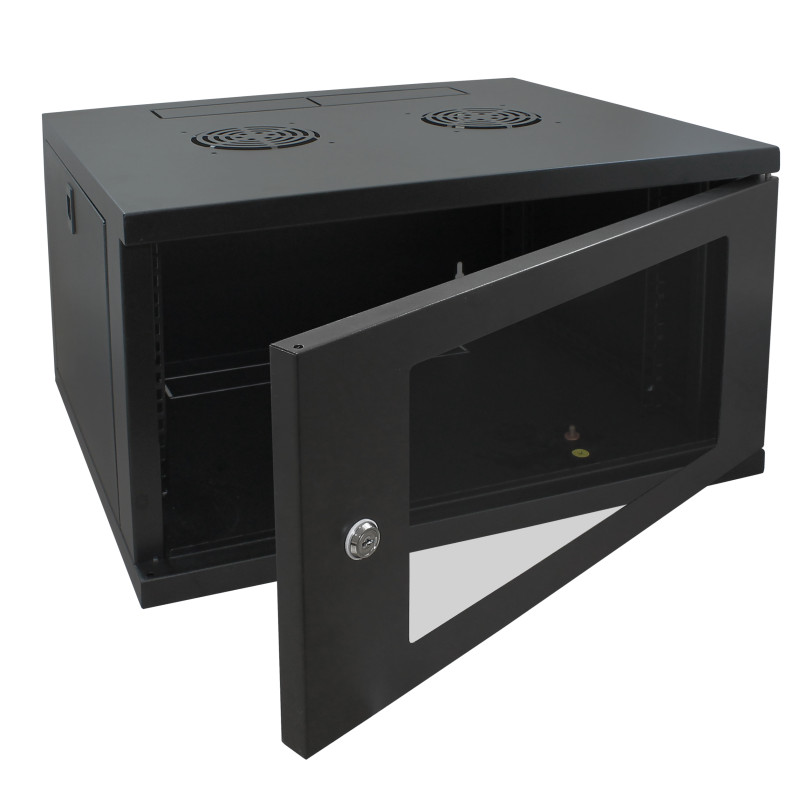

6u 450mm Deep Data Cabinet shown for illustration purposes only
Features:
- Supplied fully assembled
- Ventilated top
- Lockable and removable sides
- Cable access top and bottom
- Lockable glass front door
Dimensions By U Height
| U Height | Size (HxWxD) | Net Weight |
| 6U | 348x550x450 mm | 14 Kg |
| 9U | 481x550x450 mm | 17.5 kg |
| 12U | 615x550x450 mm | 21 Kg |
| 15U | 748x550x450 mm | 24.5 Kg |
| 18U | 881x550x450 mm | 29 Kg |
| 21U | 1015x550x450 mm | 32.5 Kg |
Maximum Internal Depth is 340mm
RR-W1-6-G
Data sheet
- Cable Entry
- Top & Bottom
- Construction
- Welded
- Depth
- 450mm
- Width
- 550mm
Specific References
- EAN13
- 5056045700592
Black Data Cabinet in a range of heights and widths.
